FTTH ODN Distribution Cable with Mini SCAPC Fast Connect SFC

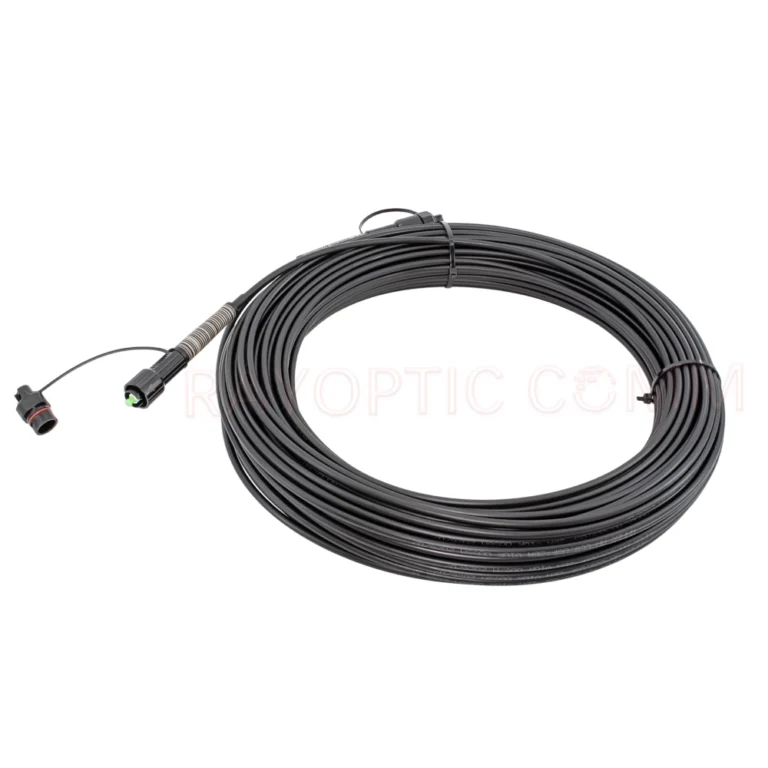

Rayoptic's FTTH ODN Distribution Cable is a pre-connectorized fiber optic cable assembly designed for FTTH ODN and FTTX distribution networks.

Rayoptic’s FTTH ODN Distribution Cable is a pre-connectorized fiber optic cable assembly designed for FTTH ODN and FTTX distribution networks.

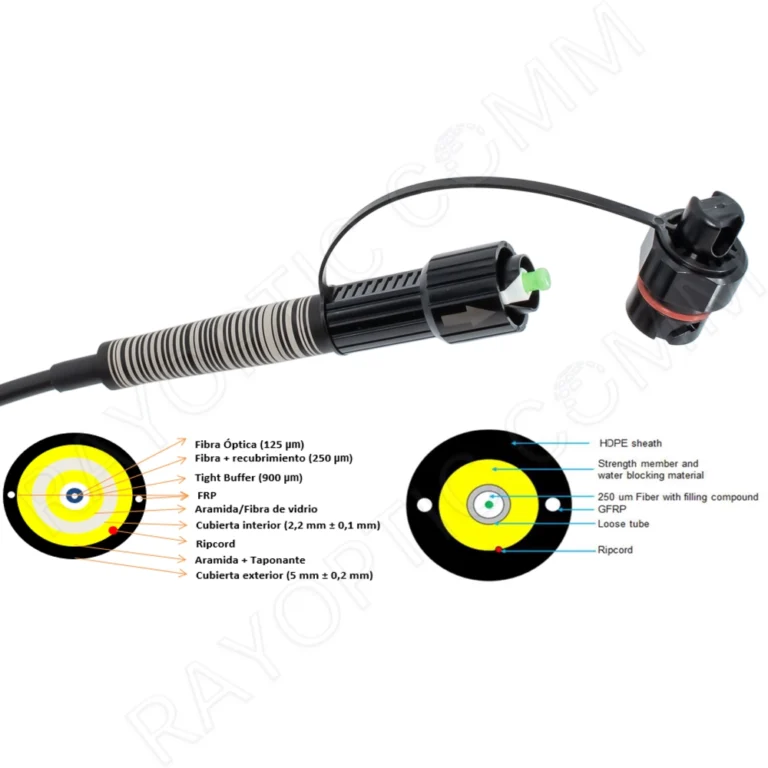

The cable features a 5.0 mm diameter, ITU-T G.657.A2 single-mode fiber and Mini SC/APC Fast Connectors at both ends. The reinforced connector design provides protection for the optical interface and is suitable for outdoor ODN network deployment.

With its compact 5 mm cable construction and reinforced waterproof connector design, the assembly provides a practical solution for interconnection between ODN distribution points and related fiber optic network equipment.

The standard configuration is 50,100,150,250,300 meters in length. Custom cable lengths and connector configurations can also be provided according to project requirements.

Fetures

Designed for FTTH ODN and FTTX networks
5.0 mm nominal cable diameter
ITU-T G.657.A2 single-mode fiber
Mini SC/APC Fast Connectors at both ends
Reinforced outdoor connector design
IP65 connector protection
Black UV-resistant HDPE outer jacket
Pre-connectorized for simplified field installation
Suitable for ODN distribution and interconnection
Optional barcode and NFC identification

Technical Specification

Parameter	Specifications
Product Type	FTTX Distribution Cable
Application	NAP/CDO, NAP/CEE and CDO/CDO Interconnection
Connector Type	Fastconnect SCAPC
Cable Type	5.0mm Black HDPE
Fiber Type	SM G657A2
Insertion Loss (dB) @1310&1550nm	Typical<0.15, Max.<0.3
Return Loss(dB)	>60
Resistance of coupling mechanism	300N
Static side load for strain relief	50N
Ingress Protection	IP65 minimum
Operating Temperature	-40～+75 ℃

Optional Barcode / NFC Identification

Product Identification

For network projects requiring individual product traceability, the cable can incorporate identification features according to project requirements.

Barcode Identification

The specification requires a Code 128C barcode on the connector boot. The identification code can contain:

Supplier code
Material identification
Year of manufacture
Manufacturing week
Sequential serial number

The resulting 14-digit code provides unique identification for each cable assembly.

NFC TAG

NFC TAG can also be provided at the connector ends.

Specified options include:

NTAG213 / NTAG215 / NTAG216
13.56 MHz
ISO 14443A
IP67
Minimum 144 bytes memory
Operating temperature: -20°C to +70°C

Application

NAP to CDO Interconnection

Designed for fiber optic interconnection between Network Access Points (NAP) and Central Distribution/Distribution Optical units.

NAP to CEE Interconnection

Suitable for connecting NAP and CEE equipment in FTTX access networks.

CDO to CDO Interconnection

Provides a pre-connectorized solution for fiber distribution between CDO locations.

Outdoor FTTX Networks

The reinforced connector structure and outdoor-rated cable construction make the product suitable for façade and pole installations.
