• Equipped with genuine SENKO SN®-MT connectors
• Compact, high-density multi-fiber connection
• 12F single-row and 24F dual-row options for 250 μm fiber
• 16F single-row and 32F dual-row options for 200 μm fiber
• Compatible with 200 μm rollable ribbon cable
• Singlemode APC and multimode APC configurations
• Typical insertion loss of 0.15 dB
• Maximum insertion loss of 0.35 dB
• Typical return loss up to ≥60 dB for singlemode
• Push-pull boot for fast connection and disconnection
• Supports ganged multi-port patching
• Reduced cable congestion in high-density installations
• Optimized for 800G, 1.6T and next-generation data rates
• Custom fiber count, cable length and cable construction available
• RoHS and REACH compliant
Products are 100% in line with international IEC standards
Design products for different scenarios according to different construction environments to help construction improve work efficiency and reduce construction difficulty.

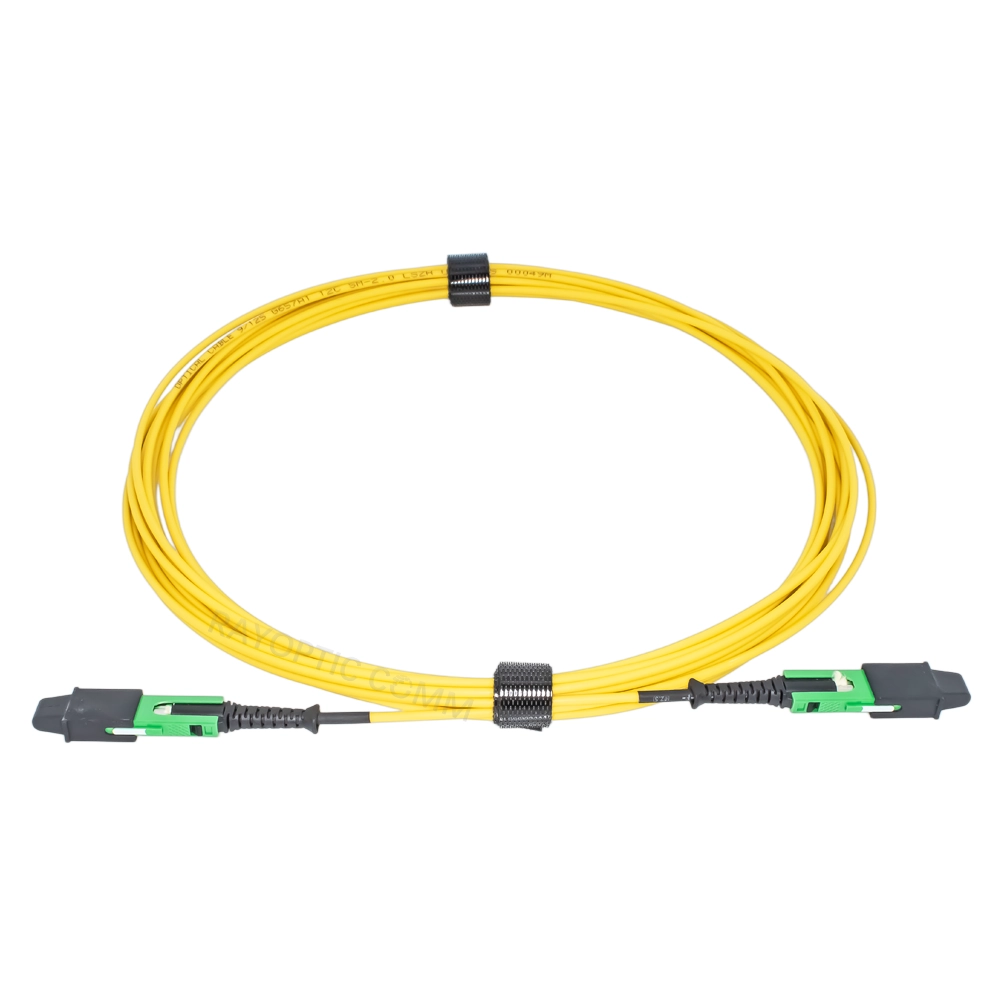

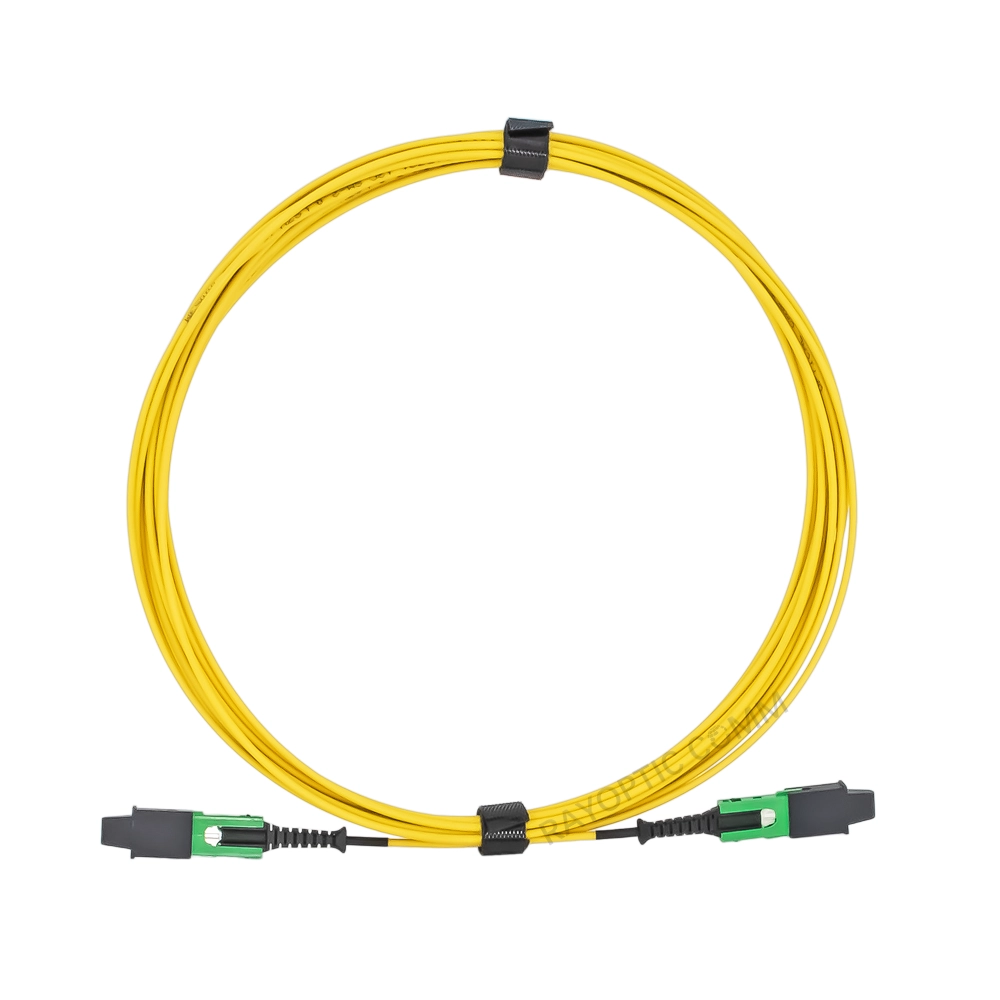

SENKO SN®-MT fiber optic patch cords provide ultra-high-density multi-fiber connectivity for next-generation data center and high-performance computing networks.
Equipped with genuine SENKO SN®-MT connectors, these patch cords combine a compact multi-fiber ferrule with low-loss optical performance. They are designed to deliver substantially higher connection density than conventional MPO cabling while reducing the space required for patching, routing and cable management.
The SN-MT patch cord portfolio supports 12- and 24-fiber configurations using 250 μm fiber, as well as 16- and 32-fiber configurations using 200 μm rollable ribbon fiber. Singlemode APC and multimode APC options are available for different network requirements.
With push-pull operation and support for ganged multi-port connectivity, SENKO SN-MT patch cords are ideal for 800G, 1.6T and future high-speed optical networks, including AI clusters, hyperscale data centers, high-density switches and co-packaged optics.
| Specification | Available options |
| Connector | Genuine SENKO SN-MT |
| Fiber count | 12F, 16F, 24F or 32F |
| Fiber pitch | 200 μm or 250 μm |
| Fiber arrangement | Single row or dual row |
| Fiber mode | Singlemode or multimode |
| Polish | APC |
| Typical insertion loss | 0.15 dB |
| Maximum insertion loss | 0.35 dB |
| Singlemode return loss | ≥60 dB |
| Multimode return loss | ≥45 dB |
| Cable diameter | 2.0, 2.6 or 3.0 mm |
| Durability | 50 mating cycles |
| Operating temperature | -40°C to +75°C |
| Compliance | RoHS and REACH |
