Fiber MST Terminal 8-Port with Built-In PLC Splitter, Stub Tail
Features
Low Loss &High Reflection
MST terminals are fully assembled and factory-sealed.All optical performance specifications comply with GR-771-Core,GR-1209-Core ensuring low insertion loss and high return loss.
IP68 rating
Each MST fiber optic terminal undergoes a strict air-tightness and pressure test to verify IP68 protection for long-term outdoor reliability.
Easy installation
To adapt to diverse installation scenarios, MST terminals support three mounting methods: aerial, wall-mounted, and pole-mounted.
This design enables fast and flexible field deployment.
Factory Direct Pricing
A professional R&D and molding team designs and manufactures the products in-house.Direct factory supply with no intermediaries ensures stable quality and competitive pricing.
Technical Data Sheet
Parameter | Specifications |
Dimensions (HxWxD) (mm) | 8 Port 338*115*95 |
Connector Support | Hardened SC/APC H Connector |
Cable Type | Flat Drop Cable Toneable, Non-toneable |
Insertion Loss(dB) | Max.<10.8 |
Return Loss (dB) | >60 |
Terminals Material | Black UV Resistant Polycarbonate (PC) |
Ingress Protection | IP 68 |
Thermal Cycle Test
Parameter Test Method Conditions
Temperature Change GR-1209-Core High Temperature: +75°C
GR-1221-CORE Lowest Temperature: -40°C
168 Hours, 21 cycles
Air Tightness Test
Multiport Service Terminal (MST) is fully assembled and sealed in factory. Each MST fiber optic terminal box undergoes an air tightness test to determine whether it meets the IP68 rating.Determining the sealing performance of MST fiber optic terminal boxes by detecting air leakage values is a fast and efficient testing method. All Rayoptic’s MST fiber optic terminal boxes are 100% tested for sealing performance.
Water Resistance Test
Test Method:
7 Days, 1.5meter water head
No water Intrusion

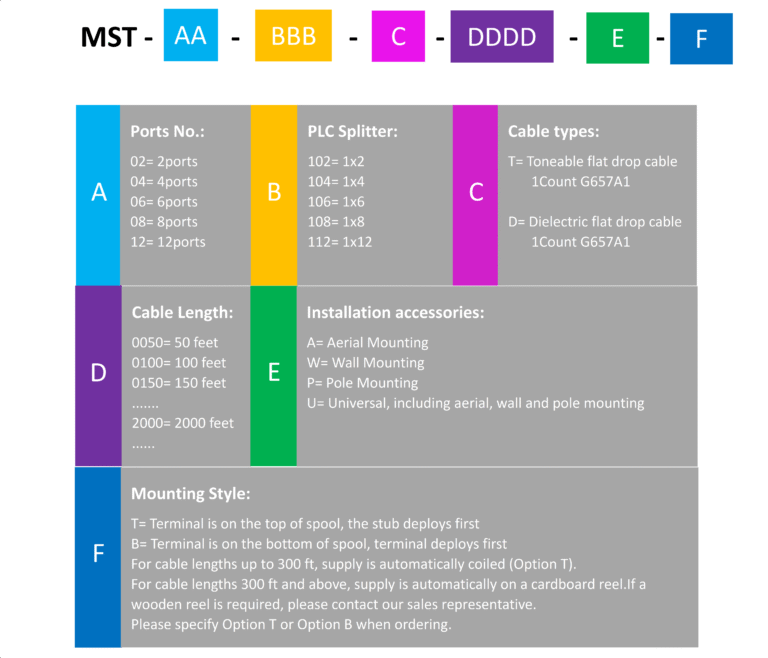

Ordering Matrix
An Overview of 8 Port MST Terminals with Built In PLC Splitter and Stub Tail
The Fiber MST Terminal 8-Port with Built-In PLC Splitter is a rugged, pre-sealed outdoor terminal designed for fast and reliable FTTH deployments. The compact housing integrates an internal 1×8 PLC splitter and a pre-terminated stub tail, enabling plug-and-play customer drop connections without additional connectors. The open tail on the feeder side is splice-ready for field termination, providing flexible installation in new builds or network extensions.
Each port uses a hardened, H connector compatible interface, ensuring secure, waterproof connections in harsh environments such as rural broadband, MDU buildings, industrial parks, and pole or wall-mounted installations. The terminal is IP68 rated, UV-resistant, and designed to meet GR-3120-CORE and GR-326-CORE performance standards for long-term stability, low insertion loss, and high return loss.
This MST terminal is ideal for North American FTTH projects requiring fast deployment, minimal maintenance, and highly reliable outdoor connectivity.
8 output ports with integrated 1×8 PLC splitter
Splice-ready stub tail for feeder connection
H Connector hardened ports
Plug-and-play customer drop connections
IP68 waterproof, UV-resistant housing
Pole, wall, or aerial mounting options
Meets GR-3120-CORE / GR-771-CORE
Ideal for North America FTTH networks
