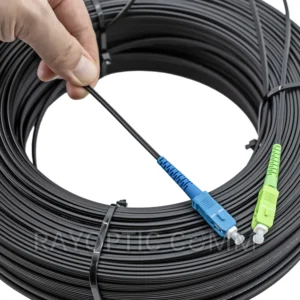

FTTH Pre-connectorized GJYXCH Drop Cable 1F G657A1 SCAPC to SCUPC Self-supporting Steel Wire LSZH Black
FTTH Pre-connectorized GJYXCH Drop Cable 1F G657A1 SC/APC to SC/UPC
The FTTH pre-connectorized GJYXCH drop cable is designed for outdoor aerial and last-mile fiber access applications. It incorporates one G657A1 bend-insensitive fiber and a self-supporting steel messenger wire, providing excellent tensile strength and reliable installation performance.
Factory-terminated SC/APC to SC/UPC connectors enable plug-and-play deployment, reducing field splicing time and installation costs. The LSZH jacket offers low smoke and halogen-free characteristics, making it suitable for residential broadband, telecom networks, and FTTH access systems.
Features of FTTH Pre-connectorized GJYXCH Drop Cable
- Factory-terminated SC/APC to SC/UPC connectors
- 1 fiber G657A1 bend-insensitive optical fiber
- GJYXCH self-supporting structure with steel messenger wire
- LSZH black outer jacket
- Low insertion loss and high return loss
- Suitable for aerial and outdoor installations
- Plug-and-play deployment
- Customized cable lengths available
Technical Specification of FTTH Pre-connectorized GJYXCH Drop Cable
Product Type | FTTH Drop Patch Cable |
Connector A | SCAPC |
| Connector B | SCUPC |
| Polish Type | APC to UPC |
| Insertion Loss (dB) @1310&1550nm | Typical<0.15, Max.<0.30 |
Return Loss(dB) | >60 (APC),>50(UPC) |
Fiber Mode | SM 9/125μm G657A1 |
Fiber Count | 1 Fiber |
Cable Outside Diameter | 5*2mm |
Cable Jacket | LSZH |
Cable Retention | 50N (0 degrees) |
Operating Temperature | -40～+70 ℃ |
Applications of FTTH Pre-connectorized GJYXCH Drop Cable
- FTTH networks
- Broadband access systems
- Aerial fiber installations
- Last-mile connectivity
- Telecom distribution networks
- Residential and commercial fiber access
