FTTH ODN Drop Cable with Mini SC/APC or Fast Connect SFC

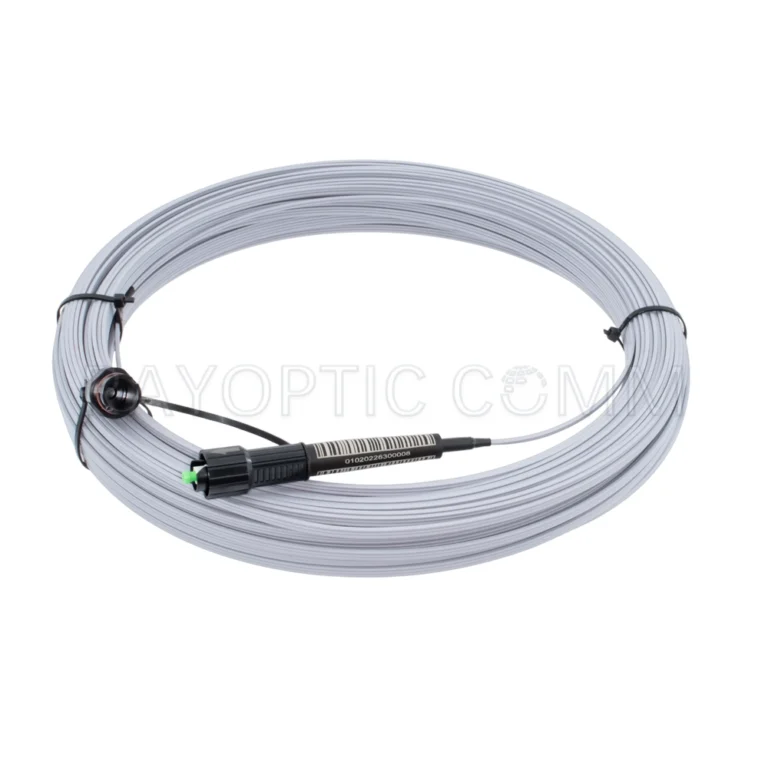

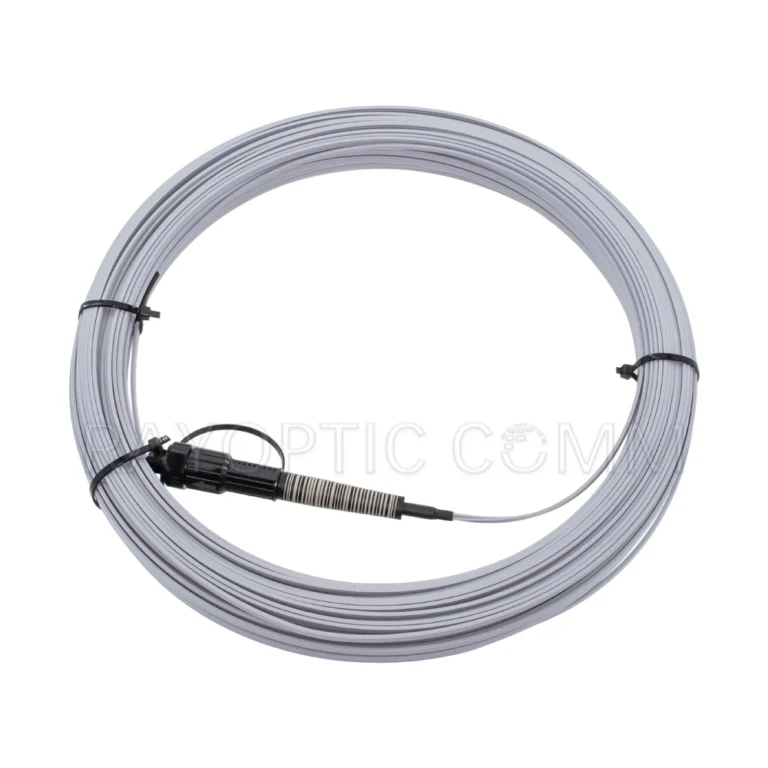

Rayoptic’s FTTH ODN Drop Cable with Mini SC/APC or Fast Connect SFC is designed for FTTH customer drop and last-mile fiber access applications. The cable features a Figure 8 self-supporting structure with G.657.A2 single-mode fiber and a factory-installed reinforced connector on one end, while the opposite end remains unconnectorized for flexible field installation.
The cable is constructed with two KFRP strength members and a galvanized steel messenger wire, providing mechanical strength for aerial and outdoor FTTH deployment. The LSZH sheath offers low-smoke, zero-halogen performance, while UV, moisture and fungus resistance make the cable suitable for outdoor and indoor applications.
The connector assembly is designed for outdoor FTTH environments and provides IP65 protection. Both Mini SC/APC and Fast Connect SFC configurations are available to meet different FTTH ODN deployment requirements.
Standard cable lengths include 50m, 100m, 150m, 200m, 250m and 300m, with custom configurations available according to project requirements.
For projects requiring product identification and traceability, barcode and NFC TAG can be provided as optional features according to customer requirements.
Fetures
- FTTH ODN customer drop cable for last-mile fiber access networks
- Figure 8 self-supporting cable construction
- G.657.A2 single-mode fiber
- One factory-installed connector with one unconnectorized end
- Available with Mini SC/APC or Fast Connect SFC
- Standard lengths: 50m, 100m, 150m, 200m, 250m and 300m
- Two KFRP strength members
- Galvanized steel messenger wire
- LSZH low-smoke zero-halogen sheath
- UV, moisture and fungus resistant
- Suitable for outdoor and indoor installation
- Reinforced connector design for outdoor FTTH applications
- IP65 connector protection
Technical Specification
Parameter | Specifications |
Product Type | Semi-connectorized FTTH Figure 8 Drop Cable |
Application | FTTH ODN Customer Drop and Last Mile Fiber Access |
Connector Type | Mini SC/APC / Fast Connect SFC |
Cable Type | 2.0 × 5.0 mm LSZH |
| Fiber Type | SM G657A2 |
| Insertion Loss (dB) @1310&1550nm | Typical<0.15, Max.<0.3 |
Return Loss(dB) | >60 |
Resistance of coupling mechanism | 300N |
Static side load for strain relief | 50N |
Ingress Protection | IP65 minimum |
Operating Temperature | -40～+75 ℃ |
Optional Barcode / NFC Identification
Product Identification
For network projects requiring individual product traceability, the cable can incorporate identification features according to project requirements.
Barcode Identification
The specification requires a Code 128C barcode on the connector boot. The identification code can contain:
- Supplier code
- Material identification
- Year of manufacture
- Manufacturing week
- Sequential serial number
The resulting 14-digit code provides unique identification for each cable assembly.
NFC TAG
NFC TAG can also be provided at the connector ends.
Specified options include:
- NTAG213 / NTAG215 / NTAG216
- 13.56 MHz
- ISO 14443A
- IP67
- Minimum 144 bytes memory
- Operating temperature: -20°C to +70°C
Application
- FTTH ODN customer drop connections
- FTTH last-mile fiber access networks
- CDO customer links
- Residential FTTH fiber connections
- Outdoor aerial fiber drop applications
- Pole-to-building fiber connections
- Facade fiber installations
- South American FTTH ODN deployments
