Fiber NID with Built-in Reel
Tags: Network Interface Device (NID), Fiber NID Box, NID Enclosure, Fiber Entrance Terminal Demarcation Enclosure (FET)
Fiber NID with Built-in Reel is designed for outdoor FTTH drop cable installation where fast deployment, clean cable storage, and protected fiber connection are required.

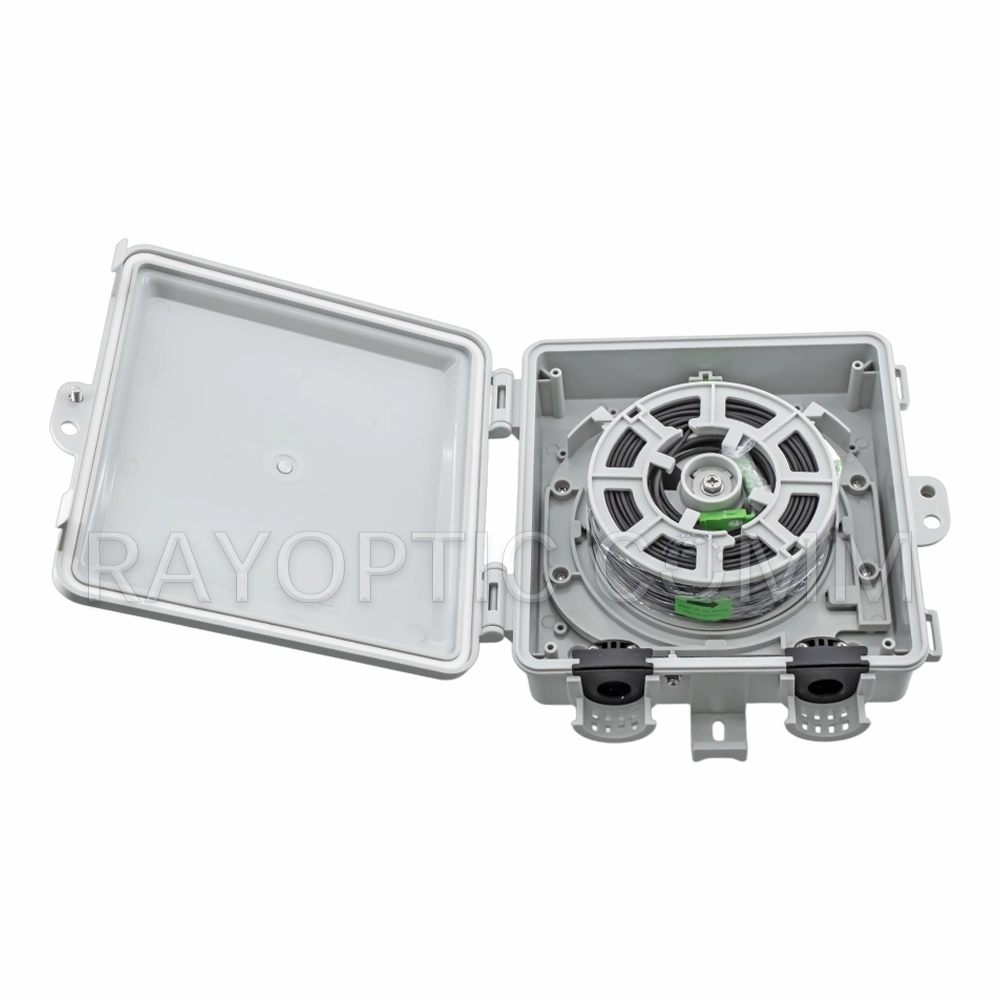

The drop cable is pre-wound on the internal reel and factory-terminated with SC/APC connectors on both ends. This helps reduce field splicing, shorten installation time, and keep the drop cable neatly organized inside the enclosure. Standard cable length options are available up to 150 ft.
The enclosure features IP55 protection and foam strip sealing, providing basic outdoor protection against dust and water spray. Its compact structure makes it suitable for residential fiber access, wall-mounted subscriber connection points, and last-mile FTTH network deployment.
As a passive fiber optic access enclosure, this Fiber NID provides cable storage, fiber routing, connector protection, and a clean demarcation point for FTTH installations.
Fetures
- Built-in Reel Design
Stores and manages excess drop cable neatly inside the Fiber NID. - Factory-Terminated SC/APC Connectors
Both ends are factory-terminated with SC/APC connectors to reduce field splicing. - Armored or Non-Armored Drop Cable Options
Available with armored or non-armored drop cable to meet different installation requirements. - IP55 Outdoor Protection
Provides protection for outdoor FTTH access and subscriber connection points. - Available up to 150 ft
Suitable for standard residential FTTH drop cable installation lengths.
Technical Specification
Parameter | Specifications |
Dimensions (HxWxD) (mm) | 275 x 252 x 75mm (10.82 x 9.92 x 2.95 in) |
Materials | ABS and PC |
Supported Cable Type | Flat OD: 2mm to 8.1 x4.5mm Round OD: 3mm to16.2mm |
| Color | Light Gray |
Ports | 2 (1-in,1-out) |
Application | Wall Mounting |
Ingress Protection | IP 55 |
Environment Performance
Parameter | Specifications |
Storange Temperture Range | -40°C to 80°C (-40°F to 176°F) |
OperatingTemperature Range | -40°C to 80°C (-40°F to 176°F) |
Flame-retardant rating | Optional: Flame-retardant / Non-flame-retardant |
RoHS | Compliant |
Application
FTTH Residential Drop Cable Installation
Used for fiber drop cable deployment from the outdoor access network to residential subscriber premises.
Outdoor Fiber Network Interface Point
Works as a compact fiber NID for outdoor wall-mounted subscriber connection and demarcation.
Pre-Terminated Drop Cable Deployment
Ideal for projects where factory-terminated SC/APC drop cable is required to reduce field splicing and shorten installation time.
Last-Mile Fiber Access Networks
Suitable for last-mile FTTH/FTTx connections between distribution points and end-user locations.
Cable Storage and Protection
The built-in reel helps store excess drop cable neatly inside the enclosure while protecting the fiber connection point.
Residential and Small Building Fiber Access
Designed for homes, apartments, villas, and small commercial buildings requiring organized outdoor fiber access.
