Introduction: Why MST Matters in FTTH Rollouts

The global fiber-optic industry is advancing rapidly, yet the “last mile” remains one of the most challenging stages of deployment. Traditional FTTH installations often require on-site splicing, bulky closures, and highly trained technicians—leading to longer installation cycles and higher project costs.

Driven by the growing demand for faster and more reliable broadband, the MST Fiber Terminal has emerged as a transformative solution. Designed for the drop segment of FTTH networks, MST hardware simplifies installation, improves reliability, and speeds up network rollouts.

FTTH solution illustrating how Rayoptic MST terminals and hardened drop cables connect homes through a plug-and-play outdoor network.

At Rayoptic, we summarize the value of hardened fiber terminal solutions in three core points:

• ✅ Fast connection
• ✅ Low labor
• ✅ High reliability

What Is an MST Fiber Terminal?

An MST Fiber Terminal — also called a fiber terminal box, MST fiber enclosure, or Fiber Terminal (Hardened) — is a compact outdoor distribution unit that connects the feeder cable to multiple drop cables leading to end users.

In short, it is the bridge between your fiber distribution network and customer homes.

Core Components

• Hardened Adapters
  Outdoor-rated connectors such as SC/APC or OptiTap, enabling fast plug-in connections.
• Factory-sealed Housing
  IP68-rated casing protecting fibers from water, dust, and UV.
• Pre-terminated Fiber Stub
  Factory-controlled fiber quality that eliminates on-site terminations.

Compared with traditional splice closures, the Multi-Service Terminal offers faster deployment, higher reliability, and greatly simplified maintenance.

How MST Fiber Terminals Work

Signal Flow

Feeder Cable → MST Fiber Terminal → Hardened Drop Cable → ONT

Operational Principles

Inside the fiber terminal box:

1. The feeder cable connects via the pre-terminated stub.
2. Fibers are routed through controlled bend-radius guides.
3. Each output port leads to a hardened adapter on the external shell.
4. Installers simply connect a pre-connectorized hardened drop cable from the MST to the ONT.

This plug-and-play design ensures:

• ≤0.3 dB insertion loss
• ≥60 dB return loss
• No splicing required on site
• Consistent optical performance

The IP68 hardened housing enables installation on poles, walls, pedestals, or inside hand-holes—ideal for all FTTH outdoor architectures.

Key Advantages of Using MST Terminals in FTTH

4.1 Faster and Easier Installation

• No fusion splicing
• No epoxy or polishing
• No precision equipment required

A standard two-person crew can install an 8-port hardened terminal in under two hours — often up to 70% faster than conventional splice boxes.

4.2 Lower Total Deployment Cost

• Factory-tested connectors reduce installation errors
• Minimal rework required
• No expensive splicing machines needed
• Reduced demand for highly skilled splicing technicians

When paired with Rayoptic hardened drop cables, overall FTTH deployment cost can drop by 20–25%.

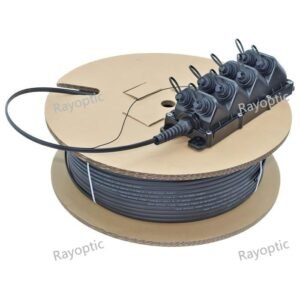

MST Fiber Terminal on Cardboard Reel – OptiTap Compatible Drop Cable Assembly

4.3 High Reliability and Durability

• IP68 waterproof and dustproof
• GR-326 and GR-3120 certified
• −40°C to +70°C temperature resistance
• UV-resistant anti-aging housing

With a service life of over 20 years, MST terminals provide stable long-term outdoor performance.

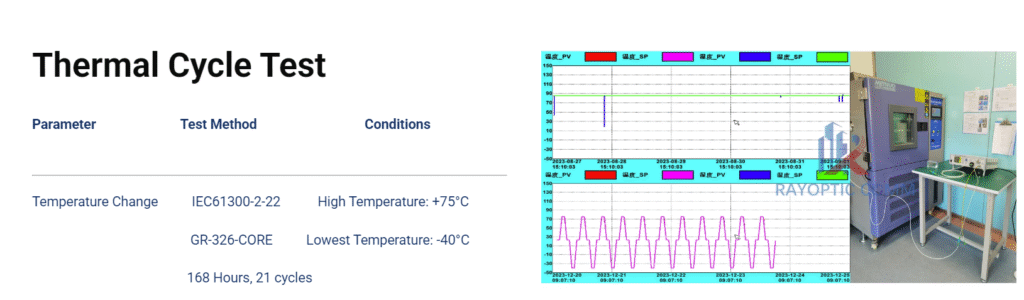

Thermal cycle test results showing high-low temperature curves and the environmental chamber used for fiber optic reliability testing.

4.4 Compatibility and Scalability

• SC/APC and OptiTap-compatible hardened interfaces
• 2 / 4 / 6 / 8 / 12 port configurations
•

  Rayoptic multi-port MST fiber terminals in 2–8 port options for outdoor FTTH plug-and-play deployment

  Full compatibility with Rayoptic hardened drop cables

Typical Deployment Scenarios

Residential FTTH

Wall- or pole-mounted terminals supporting fast connections in apartment buildings and gated communities.

Rural Broadband

Pedestal-mounted MST terminals supporting long-distance drops across farms and remote villages.

Urban Pole / Wall Mounted ODN

Mounted on utility poles or walls to shorten drop lengths and simplify distribution.

Pedestal / Hand-hole Installations

Ideal for underground networks requiring moisture-proof and accessible terminal points.

Business Impact: Simplified Deployment = Faster ROI

• Up to 70% reduction in cable and splicing costs
• 50%+ reduction in installation labor
• Significantly fewer maintenance visits

For ISPs, faster installation means earlier service activation and quicker ROI.

This approach is especially effective for FTTP/FTTH and industrial park deployments.

Rayoptic MST Fiber Solutions

Since 2020, Rayoptic has been designing and producing MST fiber terminals with continuous technology upgrades. We now export over 20,000 MST units annually to customers across North America, Europe, and Latin America.

This growth demonstrates that:

• The global demand for MST fiber continues to increase
• Rayoptic’s quality meets — and often exceeds — international expectations

Rayoptic MST fiber terminal and hardened drop cable assemblies prepared for FTTH network deployments.

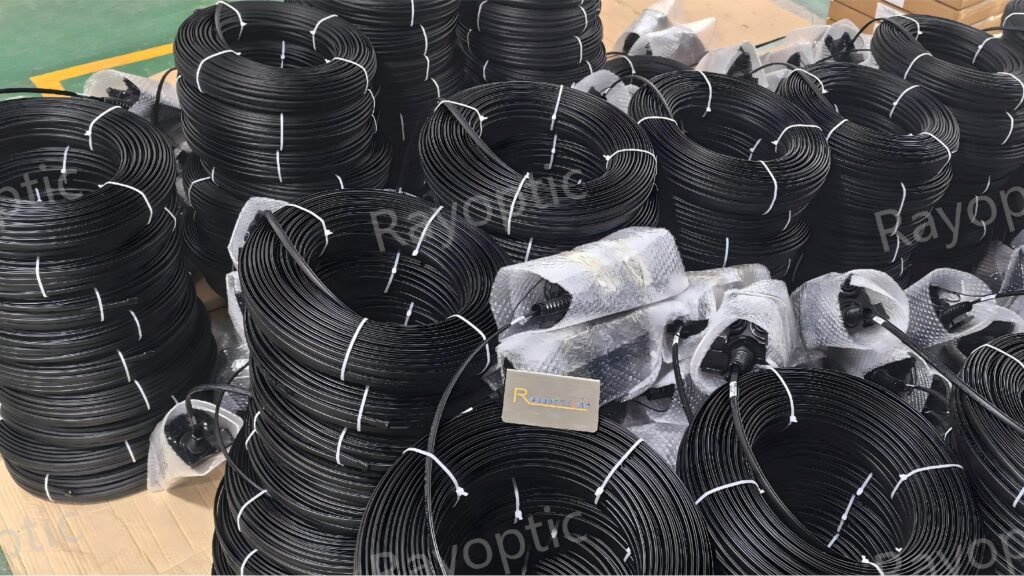

Bulk production of Rayoptic pre-terminated hardened drop cables for outdoor FTTH projects.

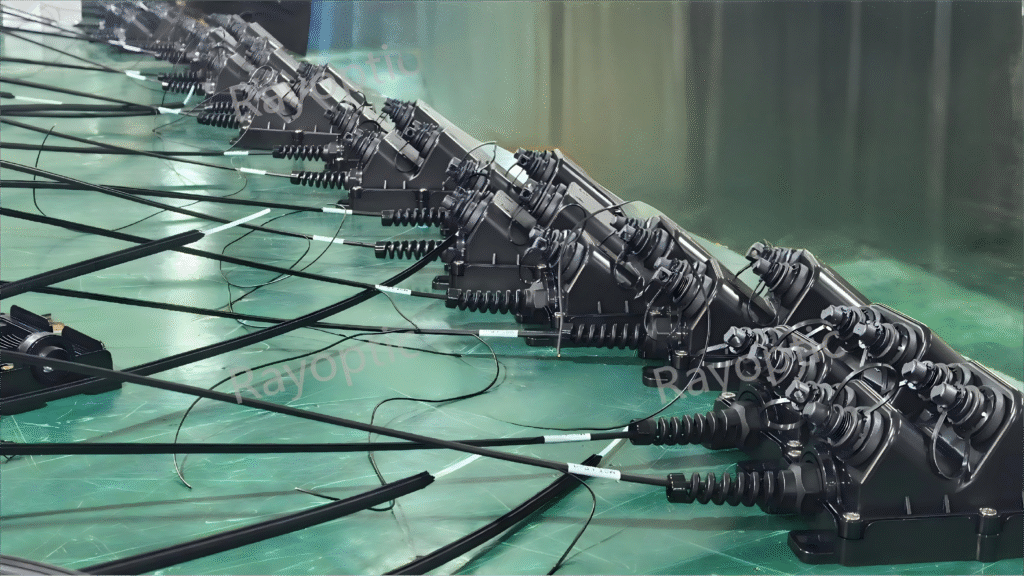

Rayoptic MST fiber terminals in batch production, equipped with hardened SC/APC connectors for outdoor FTTH networks.

Product Highlights

• Configurations: 2 / 4 / 6 / 8 / 12 ports
• Factory-tested SC/APC hardened adapters (IP68)
• Flat dielectric or armored round stub cables
• Compatibility with Corning OptiTap and Huawei Mini SC systems
• Custom options: port orientation, stub length, labeling, mounting
• Compliance with GR-771, GR-326, IEC 61753-1

Rayoptic MST terminals integrate perfectly with our hardened drop cable series, providing a complete plug-and-play FTTH solution.

We also provide full customized FTTH solutions — from sample development to mass-production support.

Conclusion

The MST Fiber Terminal — whether referred to as a fiber terminal box, an MST fiber enclosure, or a Multi-Service Terminal — is one of the most influential innovations in modern FTTH deployment.

MST solutions help operators:

• Simplify installation
• Increase network reliability
• Reduce deployment cost
• Accelerate rollout speed

With 20,000+ units exported annually, Rayoptic MST products are trusted by global ISPs and systems integrators.
