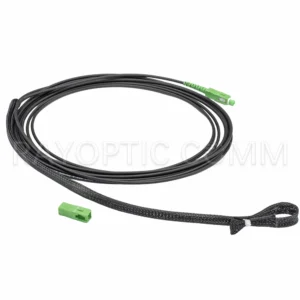

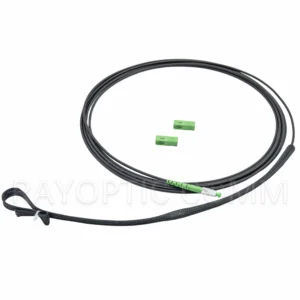

Ruggedized Fiber Optic Patch Cable with Pulling Grip, SC/APC Connector, Round Drop
Tags: Fiber Optic Drop Cable Assembly, SCAPC Connector, 3.0mm Round Drop
The Ruggedized Fiber Optic Patch Cable with Pulling Grip is engineered for quick and reliable fiber installations in both indoor and outdoor environments. Featuring pre-terminated SC/APC connectors and a protective pulling eye, this cable enables effortless deployment through ducts, conduits, and building pathways without risking fiber damage.
Ideal for Fiber NID (Network Interface Device) to wall outlet connections, this MDU drop cable combines high optical performance with rugged construction. The integrated pulling grip protects the connectors during installation, allowing technicians to pull the cable safely over long distances or through tight bends.
With a ruggedized jacket and G.657A1/A2 bend-insensitive fiber, the patch cord provides excellent resistance to crushing, bending, and environmental stress. This ensures low insertion loss, high return loss, and stable optical performance across demanding FTTH and MDU deployments.
Fetures
Pulling Grip Design: Pre-installed pulling eye for safe, efficient installation.
SC/APC Connectors: Precision pre-terminated connectors with low insertion loss.
Ruggedized Drop Cable: Durable construction for indoor and outdoor use.
Bend-Insensitive Fiber: G.657A1/A2/B3 for superior flexibility and stability.
Easy Deployment: Plug-and-play solution that reduces installation time and labor costs.
Technical Specification
Parameter | Specifications |
Product Type | Ruggedized Fiber Optic Patch Cable with Pulling Grip |
Connector Type | SCAPC(green) |
Cable Type | Ruggedized 3.0mm Round Drop |
| Fiber Type | G.657A1/A2/B3 |
| Jacket Material | LSZH/PVC/ UV-Resistant |
| Insertion Loss (dB) @1310&1550nm | Typical<0.15, Max.<0.3 |
Return Loss(dB) | >60 |
Pulling Force of Connector At 0° | 67N(15lbs) |
Environment Performance
Parameter | Specifications |
Storange Temperture Range | -40°C to 80°C (-40°F to 176°F) |
OperatingTemperature Range | -40°C to 80°C (-40°F to 176°F) |
Flame-retardant rating | Flame-retardant |
RoHS | Compliant |
Application
Fiber NID to wall outlet connection
FTTH (Fiber-to-the-Home) installations
MDU (Multi-Dwelling Unit) fiber deployments
Indoor/outdoor optical distribution networks
Fast plug-and-play pre-terminated solutions
