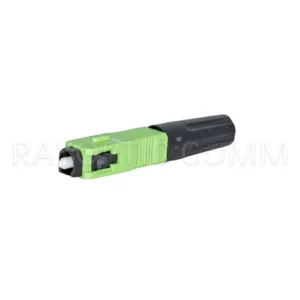

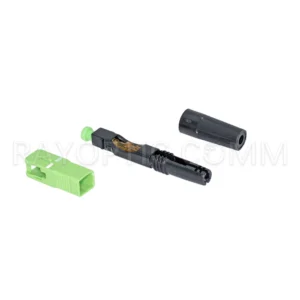

SCAPC Field Assembly Fast Connector – Quick Termination Type for FTTH Drop Cable
The SC/APC Field Assembly Fast Connector provides a quick and reliable solution for fiber-to-the-home (FTTH) field terminations.
With its pre-polished ceramic ferrule and precision mechanical splice design, installers can complete connections efficiently without epoxy, polishing, or curing.
It delivers stable optical performance with low insertion loss and high return loss, even in demanding environments.
Ideal for indoor and outdoor drop cable terminations, this connector meets the needs of Latin American FTTH deployments that require fast installation and cost-effective performance.
Fetures
Fast and tool-free field installation
Compatible with 2.0×3.0 mm flat drop cable and round drop cable
Pre-polished ceramic ferrule ensures low insertion and return loss
Durable housing with high mechanical stability
Re-usable design for maintenance or quick restoration
Suitable for SC/APC interface and FTTH last-mile connections
Technical Specification
Parameter | Specifications |
Product Type | Field Assembly Fast Connector |
Connector Type | SCAPC(green) |
Cable Type | 3.0*2.0mm Flat Drop 3.0mm Round Drop |
| Fiber Type | SM |
| Insertion Loss (dB) @1310&1550nm | Typical<0.2, Max.<0.35 |
Return Loss(dB) | >50 |
Pulling Force of Connector At 0° | 50N |
Fastening strength of bare fiber | >5N |
On-line tensile strength(20N) | ΔIL≤0.2dB |
Drop-off test(drop-off height 4m,one time per direction, totally 3 times) | ΔIL≤0.2dB |
Reusable | ≥10 times |
Operating Temperature | -40～+75 ℃ |

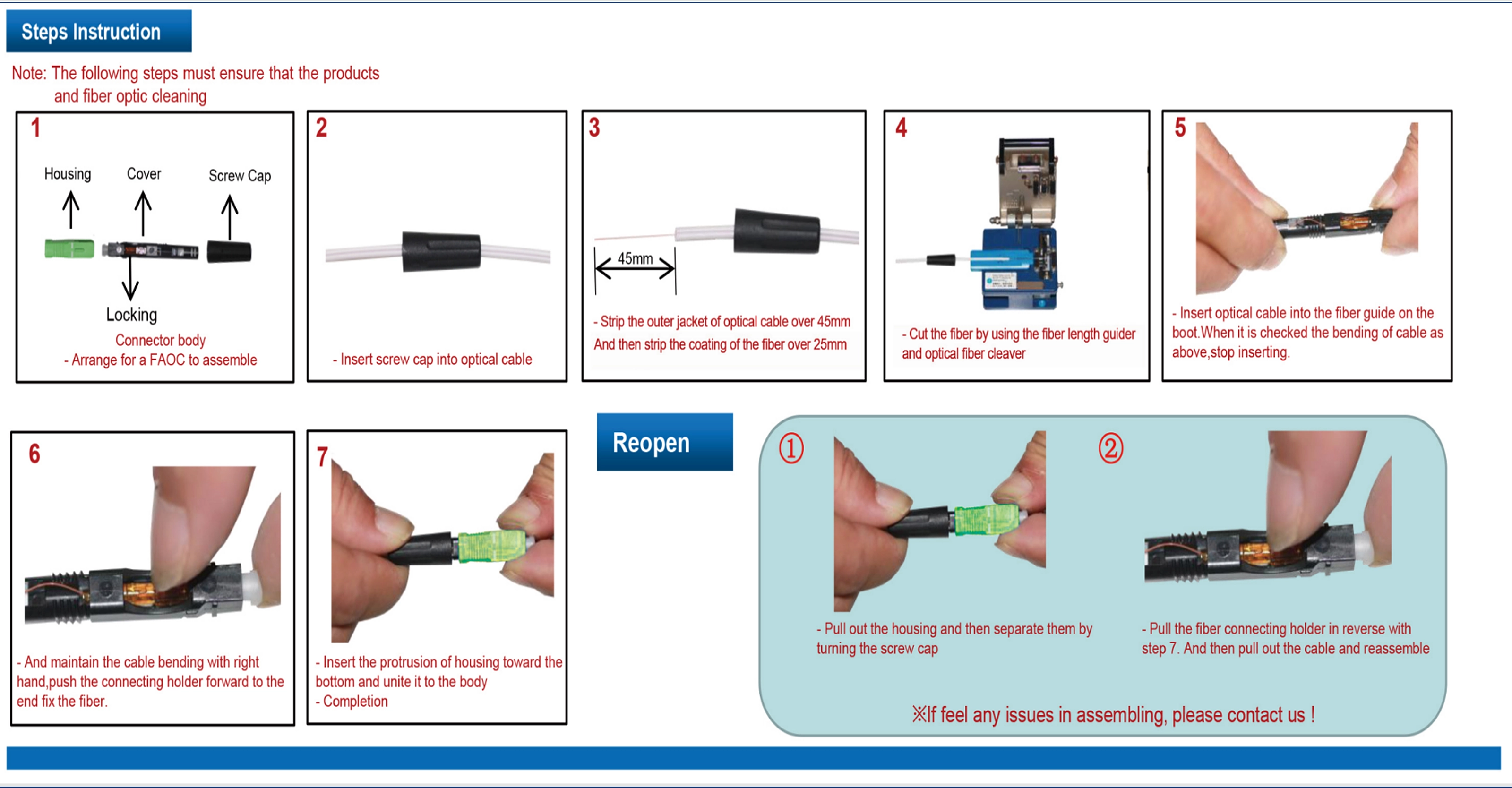

Field Assembly Instruction
Application
The SC/APC Field Assembly Fast Connector is used for last-mile fiber terminations and on-site cable assembly in FTTH and FTTB networks.
It is ideal for telecom operators, contractors, and system integrators deploying fiber broadband services in Latin American countries such as Chile, Mexico, Colombia, and Peru.
FTTH / FTTB last-mile connections
Optical distribution and terminal boxes
Fiber maintenance or emergency repair
Field termination of flat drop or round cables
Temporary optical link setup for testing or restoration
