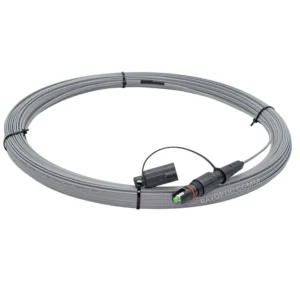

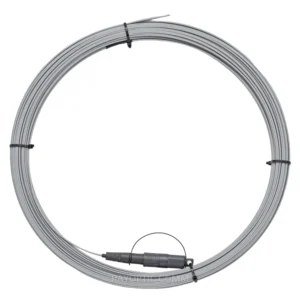

Figure 8 Compact Drop Cable Assembly, 1F with Steel Messenger, Low-Friction LSZH Jacket, OptiTap SC/APC Compatible to Stub End
The Figure 8 Compact Drop Cable Assembly (1F) is a rugged and easy-to-deploy outdoor fiber solution designed for FTTH and Quick ODN networks.
It features a steel messenger for aerial support, a low-friction LSZH jacket for smooth installation through ducts, and a factory-terminated OptiTap® SC/APC compatible connector to a stub end.
This plug-and-play design minimizes field splicing and ensures stable optical performance with low insertion loss and high return loss.
Widely used by Latin American and North American FTTH operators, the assembly offers fast network deployment, UV and weather resistance, and IP68 protection for reliable last-mile connections.
Fetures
1F Figure 8 Compact Drop Cable with integrated steel messenger for strong aerial support
Factory-installed OptiTap® SC/APC compatible connector on one end, stub end on the other
Low-friction LSZH jacket for smooth duct installation and environmental safety
IP68 waterproof and UV-resistant design for outdoor applications
Low IL (≤ 0.3 dB) and high RL (≥ 60 dB) ensure stable optical performance
Ideal for FTTH and Quick ODN rollouts by operators such as Movistar, Telefónica, Claro, Vivo, Entel, Tigo, and CNT
Compatible with MST boxes, NID enclosures, and OptiTap® adapters
Technical Specification
Parameter | Specifications |
Product Type | Pre-connectorized Fig 8 Drop Patch Cable |
Connector Type | Opti-tap SCAPC Compatible |
Cable Type | 5.0*2.0mm Fig. 8 Drop 3.0&5.0mm Round Drop |
| Fiber Type | SM G657A |
| Insertion Loss (dB) @1310&1550nm | Typical<0.15, Max.<0.3 |
Return Loss(dB) | >60 |
Resistance of coupling mechanism | 300N |
Static side load for strain relief | 50N |
Ingress Protection | IP68 |
Operating Temperature | -40～+75 ℃ |

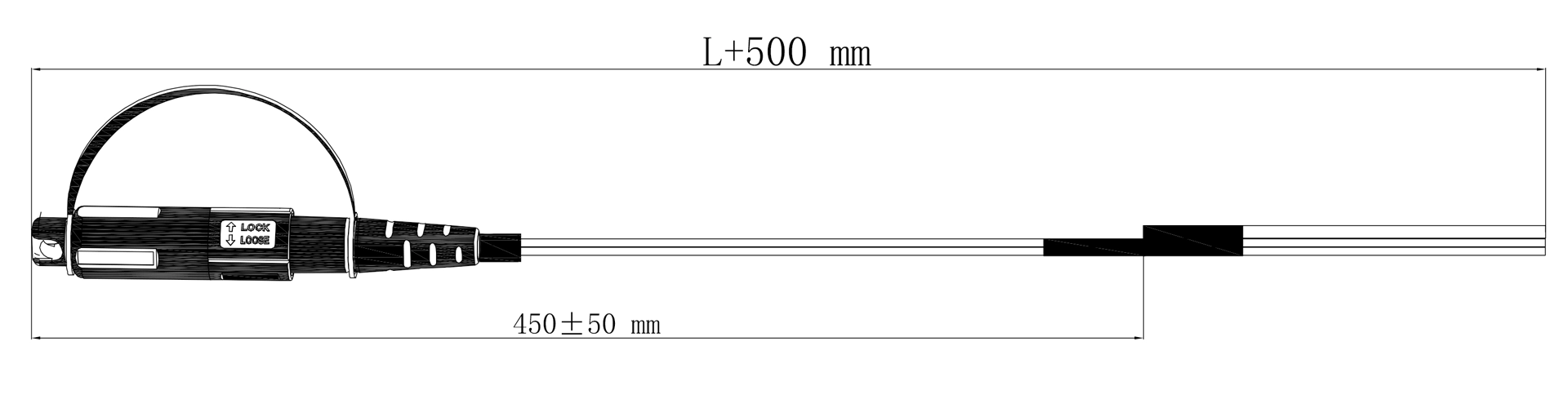

Dimensional Drawing
Application
FTTH / FTTx outdoor distribution
Fiber access terminals (ODN Solution)
Residential broadband connections
OEM or customized outdoor fiber assemblies
