Fiber Optic Drop Cable Assembly, Hardened SCAPC to stub, Flat Dielectric
Tags: Flat Drop Cable Assembly, Hardened Full-Size SCAPC, HFOC SCAPC
The Fiber Optic Drop Cable Assembly, Hardened SC/APC to Stub, Flat Dielectric is a robust pre-terminated solution designed for outdoor FTTH deployment. Featuring a factory-installed hardened SC/APC connector on one end and an open stub on the other, this assembly enables quick plug-and-play installation with excellent optical performance. The flat dielectric cable structure ensures lightweight handling, high tensile strength, and long-term durability, making it ideal for last-mile fiber access networks in challenging environments. Manufactured at Rayoptic’s factory in China, this product is rigorously tested in accordance with GR-3120-Core standards to guarantee reliability and long-term field performance.
Fetures

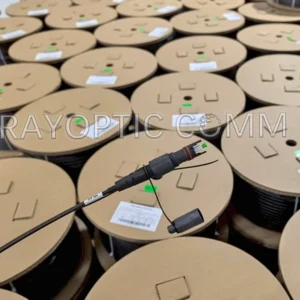

Factory-Terminated Hardened Connectors – Pre-installed SC/APC connectors are environmentally sealed to ensure reliable performance in outdoor FTTH drop cable deployments.
Ruggedized for Harsh Environments – Designed to withstand the demanding outside plant environment, delivering durability and stable optical performance.

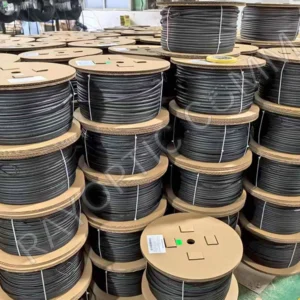

Rayoptic-Designed Cardboard Reel Packaging – Sturdy and eco-friendly cardboard reels developed by Rayoptic improve cable protection, reduce shipping weight, and support sustainable packaging practices.
Efficient Handling and Deployment – Compact reel design ensures easier transport, storage, and cable payout during field installation.
Technical Specification
Parameter | Specifications |
End 1 Connector A | Hardened SCAPC |
End 2 Connector B | Stub |
Cable Type | Flat Dielectric 4.5*8.1mm |
| Insertion Loss (dB) @1310&1550nm | Typical<0.15, Max.<0.3 |
Return Loss(dB) | >60 |
Pulling Force of Hardened Connector At 0° | 450N(100lbs) |
Pulling Force of Hardened Connector At 90° | 67N(15lbs) |
Ingress Protection | IP 68 |
Environment Performance
Parameter | Specifications |
Storange Temperture Range | -40°C to 80°C (-40°F to 176°F) |
OperatingTemperature Range | -40°C to 80°C (-40°F to 176°F) |
Flame-retardant rating | Optional: Flame-retardant / Non-flame-retardant |
RoHS | Compliant |
Application
FTTH Last-Mile Connectivity – Ideal for connecting optical distribution networks to customer premises in fiber-to-the-home projects.
Outdoor Access Networks – Designed for use in aerial, conduit, and direct-buried installations where ruggedized protection is required.
Telecom and Broadband Providers – Suitable for large-scale deployments by operators seeking fast, reliable, and cost-effective fiber rollouts.
MDU / Campus Environments – Supports fiber access in multi-dwelling units, business campuses, and community networks.
Rayoptic Cardboard Reel Deployments – Eco-friendly reel packaging ensures easier handling and safer transport for overseas shipping and on-site installation.
