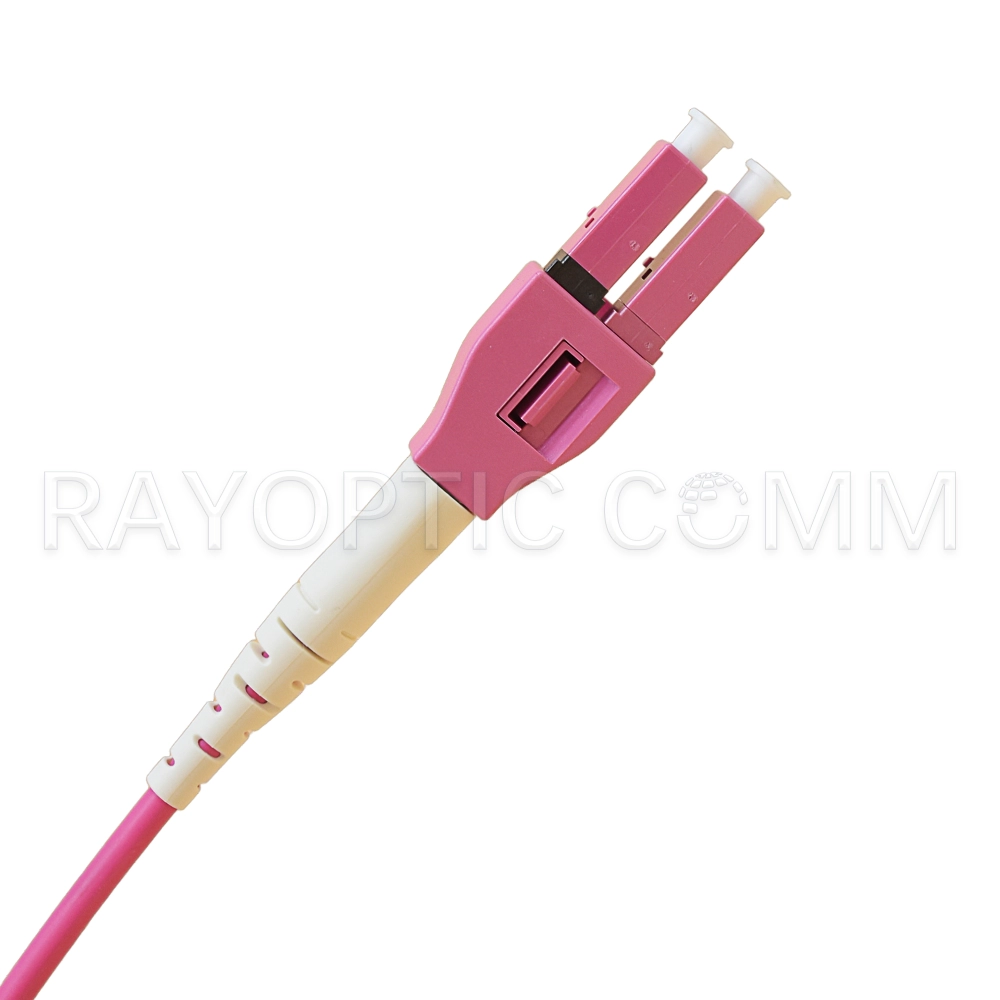

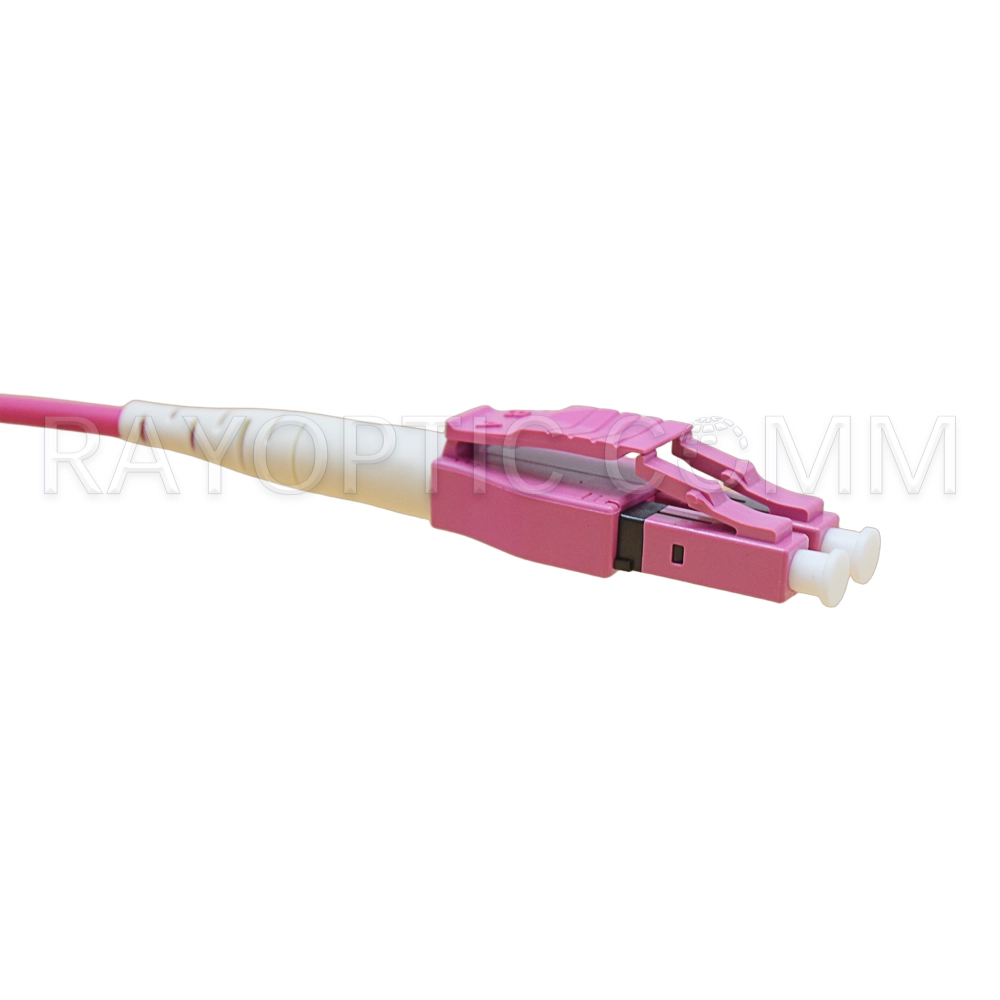

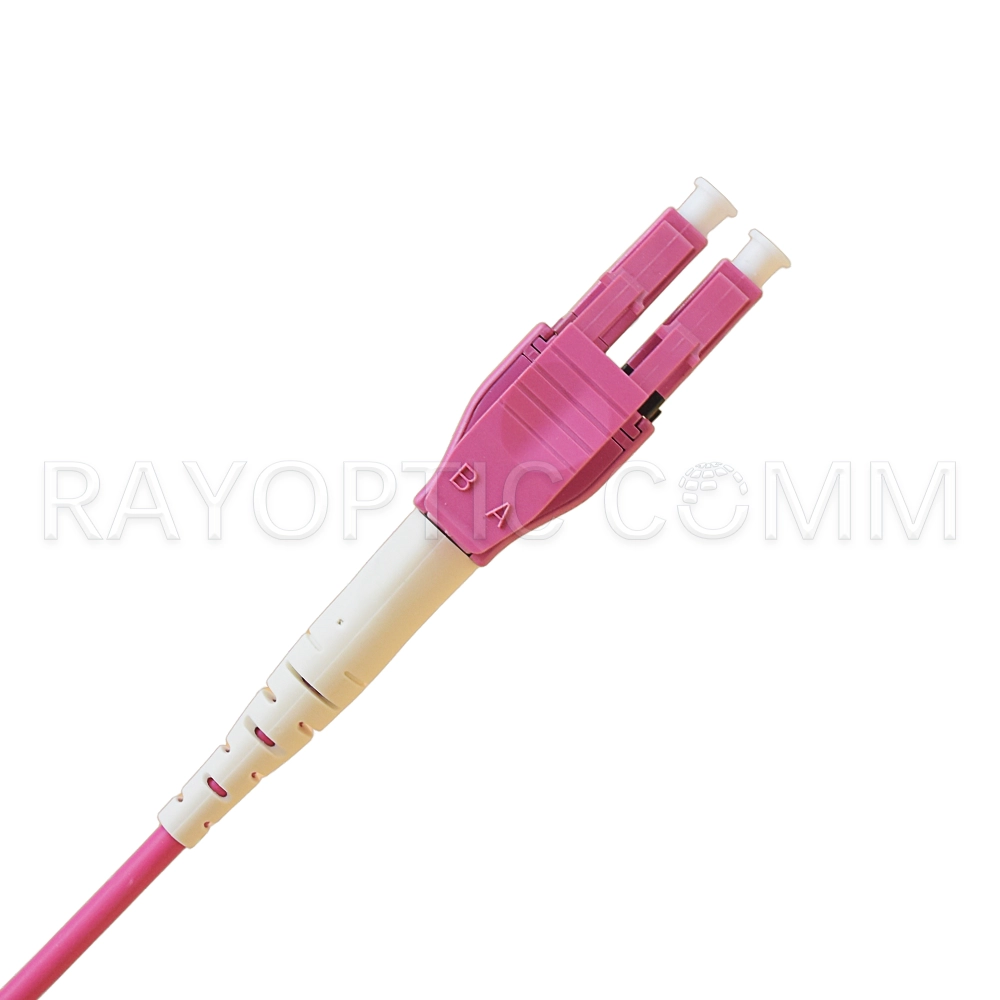

LC UPC to LC UPC Uniboot Duplex OM3 Multimode PVC(OFNR) 3.0mm Fiber Optic Jumper
Tags: LC UPC Duplex Uniboot Connector, OM3 multimode fiber optic cable,OM4 multimode fiber optic cable
Features
- Meets IEC random mating Grade B
- 50% Space-saving Uniboot for High Density Applications
- Optimized for 400G data rates with QSFP-DD, OSFP and SFP-DD transceivers
- Combines two 1.25 mm ceramic ferrules
- Easily permit to switch the polarity of the fibers only by maneuvering the connectors without the need of a special tool.
Optical Parameters
Connector Type | LC UPC to LC UPC | Fiber Grade | Bend Insensitive |
Fiber Mode | OM3,OM4 50/125μm | Wavelength | 850/1300nm |
40G Ethernet Distance
| 150m at 850nm | 100G Ethernet Distance | 100m at 850nm |
Insertion Loss
| ≤0.2dB | Return Loss | ≥30dB |
Attenuation at 850nm | 3.0dB/km | Attenuation at 1300nm | 1.0dB/km |
Fiber Count | Duplex | Cable Diameter | 2.4mm/3.0mm |
Cable Jacket | PVC,OFNR,OFNP | Polarity | A (Tx) to B (Rx) |
Mechanical Parameters
Item | Value |
Durability | 500 matings per TIA-568 |
Fiber Count | Duplex (2 fibers) |
Cable Suitability | 2.0mm/3.0mm jacketed |
Ferrule Material | Zirconia |
Dust Protection Method | Removable dust plugs that encapsulate the ferrules |
Environmental Parameters
Item | Value |
Operating Temperature | -40℃ to 75 ℃ |
RoHS Compliance | 2015/863 RoHS |
RACH Compliance | Yes |
Free of Halogen | Yes |
Humidity Resistance | 95% |
Application
- High-density patching
- QSFP-DD, OSFP and SFP-DD transceiver links for higher data rates
- FTTH, Wireless, Data Center
- Hyperscale, edge, enterprise and colocation data centers
