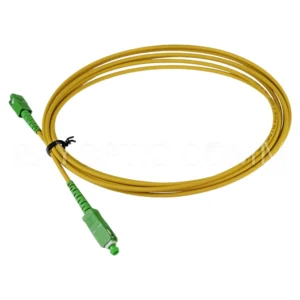

Armored Fiber Patch Cable, 1 Fiber, SC APC Simplex to SC APC Simplex, Single Mode, G657B3, 3.0mm,LSZH Yellow
The SC APC to SC APC armored fiber patch cable is designed for reliable optical connections in indoor fiber networks where additional mechanical protection is required. It is built with 1 fiber single mode G657B3, featuring excellent bend resistance for routing in limited spaces and demanding installation conditions.
This SC APC to SC APC armored fiber patch cable uses a 3.0mm yellow LSZH jacket and an armored cable structure to provide enhanced protection against compression, pulling, and external impact during installation and daily use. Compared with standard patch cords, the armored design helps reduce the risk of fiber damage and also offers improved rodent resistance, making it suitable for harsher environments where extra cable protection is needed.
With SC APC simplex to SC APC simplex connectors, this cable is suitable for optical interconnection, equipment patching, fiber distribution, and FTTH / FTTx indoor applications. It can be used in telecom rooms, communication cabinets, data rooms, and other routing environments that require stable optical performance together with stronger physical protection.
This armored patch cord combines reliable transmission performance, flexible installation, and durable cable construction, making it a practical choice for indoor optical links that demand both performance and protection.
Features of SC APC to SC APC Armored Fiber Patch Cable
- SC APC simplex to SC APC simplex connector configuration
- 1 fiber single mode G657B3 for excellent bend resistance
- Armored cable structure for enhanced mechanical protection
- Improved resistance to rodent damage
- Suitable for harsh and demanding installation environments
- 3.0mm outer diameter for reliable handling and routing
- Yellow LSZH jacket for low smoke and halogen-free performance
- Stable insertion loss and return loss performance
- Helps reduce the risk of fiber damage in dense or exposed cabling areas
Technical Specification of SC APC to SC APC Armored Fiber Patch Cable
Product Type | Armored Fiber Patch Cable |
Connector A | SCAPC 3.0MM |
| Connector B | SCAPC 3.0MM |
| Polish Type | APC to APC |
| Insertion Loss (dB) @1310&1550nm | Typical<0.15, Max.<0.30 |
Return Loss(dB) | >60 (APC) |
Fiber Mode | SM 9/125μm G657B3 |
Fiber Count | 1 Fiber |
Cable Outside Diameter | 3.0mm |
Cable Jacket | LSZH |
Cable Retention | 60N (0 degrees) |
Operating Temperature | -40～+70 ℃ |
Applications of SC APC to SC APC Armored Fiber Patch Cable
- Indoor fiber optic patching
- FTTH and FTTx optical connections
- Telecom equipment interconnection
- Data room and communication cabinet cabling
- Industrial or harsh indoor installation environments
- Routing areas where additional mechanical protection and rodent resistance are required
