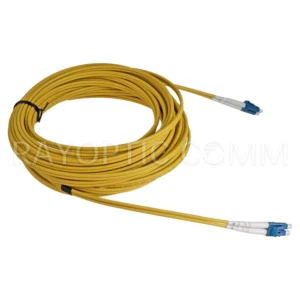

Armored Fiber Patch Cable, 2 Fiber, LC UPC Duplex to LC UPC Duplex, Single Mode, G657B3, 3.0mm,LSZH Yellow
This 2 fiber armored fiber patch cable is designed with LC UPC duplex connectors on both ends and uses single mode G657B3 fiber for reliable optical transmission and enhanced bend performance. The armored cable construction provides improved resistance against crushing, impact, and rodent damage, making it more suitable than standard patch cords for demanding indoor environments.
With a 3.0mm yellow LSZH jacket, this duplex armored fiber patch cable is well suited for indoor fiber cabling applications where low smoke, halogen-free materials, and stronger mechanical protection are required. It is commonly used in data centers, telecom rooms, equipment interconnection, and other indoor optical networks requiring durable and stable LC duplex connectivity.
Features of LC UPC Duplex Armored Fiber Patch Cable
- 1. Enhanced Mechanical Protection
Armored structure helps protect the fiber against crushing, impact, and rodent damage. - 2. Excellent Bend Resistance
G657B3 single mode fiber supports improved bending performance in limited installation spaces. - 3. Reliable LC UPC Connectivity
LC UPC duplex connectors provide stable optical performance for high-density fiber connections. - 4. LSZH Jacket for Indoor Use
The 3.0mm yellow LSZH jacket offers low smoke and halogen-free performance for indoor cabling environments. - 5. Suitable for Harsh Indoor Conditions
Ideal for applications where extra cable protection is required compared with standard patch cords.
Technical Specification of LC UPC Duplex Armored Fiber Patch Cable
Product Type | Armored Fiber Patch Cable |
Connector A | LCUPC 3.0MM |
| Connector B | LC UPC 3.0MM |
| Polish Type | UPC to UPC |
| Insertion Loss (dB) @1310&1550nm | Typical<0.15, Max.<0.30 |
Return Loss(dB) | >50 (UPC) |
Polarity | A to B |
Fiber Mode | SM 9/125μm G657B3 |
Fiber Count | 2 Fiber |
Cable Outside Diameter | 6.0*2.9mm |
Cable Jacket | LSZH |
Cable Retention | 60N (0 degrees) |
Operating Temperature | -40～+70 ℃ |
Applications of LC UPC Duplex Armored Fiber Patch Cable
- Indoor fiber optic cabling systems
- Data centers and telecom rooms
- High-density patching environments
- Equipment interconnection in protected indoor networks
- Areas requiring better crush resistance and rodent protection
