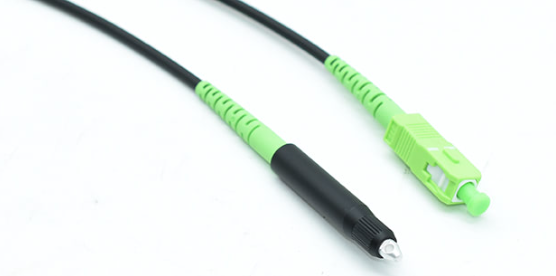

A Fiber Optic Patchcord is the connector that you connect on both ends of the fiber optic cable to differentiate the active connection from the other end. One end will have the fiber optic patch cord, and the other one will have a plug, and this end will be known as the pigtail. These cords are the same as coaxial cables except that it doesn’t have any mesh shield.

Classification of Fiber Optic Patch cord

Before we jump onto how to use the Fiber Optic Patch cord, it would be better to learn the types of fiber optic patch cords. Following are the two types of fiber optic patch cords available in the market:

Single-mode Fiber Optic Patch cord

A single-mode Fiber Optic Patch cord covers more distance to send and receive data. You get to differentiate it from other cords because it is represented with yellow color. It consists of a connector, and a blue sleeve protects it from external damage.

Multi-mode Fiber Optic Patch cord

A multi-mode Fiber Optic Patch cord covers a shorter distance to send and receive data than a single-mode fiber optic patch cord. This fiber optic patch cord gets distinguished by its orange color. You might find green or magenta colors as well. It also consists of a connector, and the protective sleeve would be black or beige.

Instruction for the use of Fiber Optic Patch cord

Here are a few instructions that you must follow for the use of a Fiber Optic Patch cord if you want it to work properly:

• Select the right fiber optic patch cord according to your requirements to ensure your data transmission doesn’t erupt.
• You must clean the fiber optic patch cord before you use it and the ceramic cord. You can use absorbent cotton and alcohol for cleaning purposes.
• Never try to bend the patch cord more than 30mm because this is the limit
• Don’t try to look at the end of the patch cord directly while it is transmitting the laser signal
• Replace the damaged part of the fiber optic patch cord
• Install the fiber optic patch cord very carefully, and it would be wise to check the patch cord one by one using the troubleshooting method

Things you need to avoid while using a Fiber Optic Patch cord

Here are a few things that you must be careful about while using a fiber optic patch cord:

• Never bend or wrap the fiber optic patch cord because it will enhance the attenuation of light in transmitting data.
• Never try to bring food while you are using fiber optic patch cords
• You should try to handle the patch cord without wearing your safety glasses

Contact RayOPTI CCCM if you need quality Fiber Optic Patchcord

Now you know the color of the two types of fiber optic patch cord so you don’t mix, and you can select the right Fiber Optic Patch cord according to your requirements. Contact us to get Fiber Optic Patchcord and different options with premium quality.
